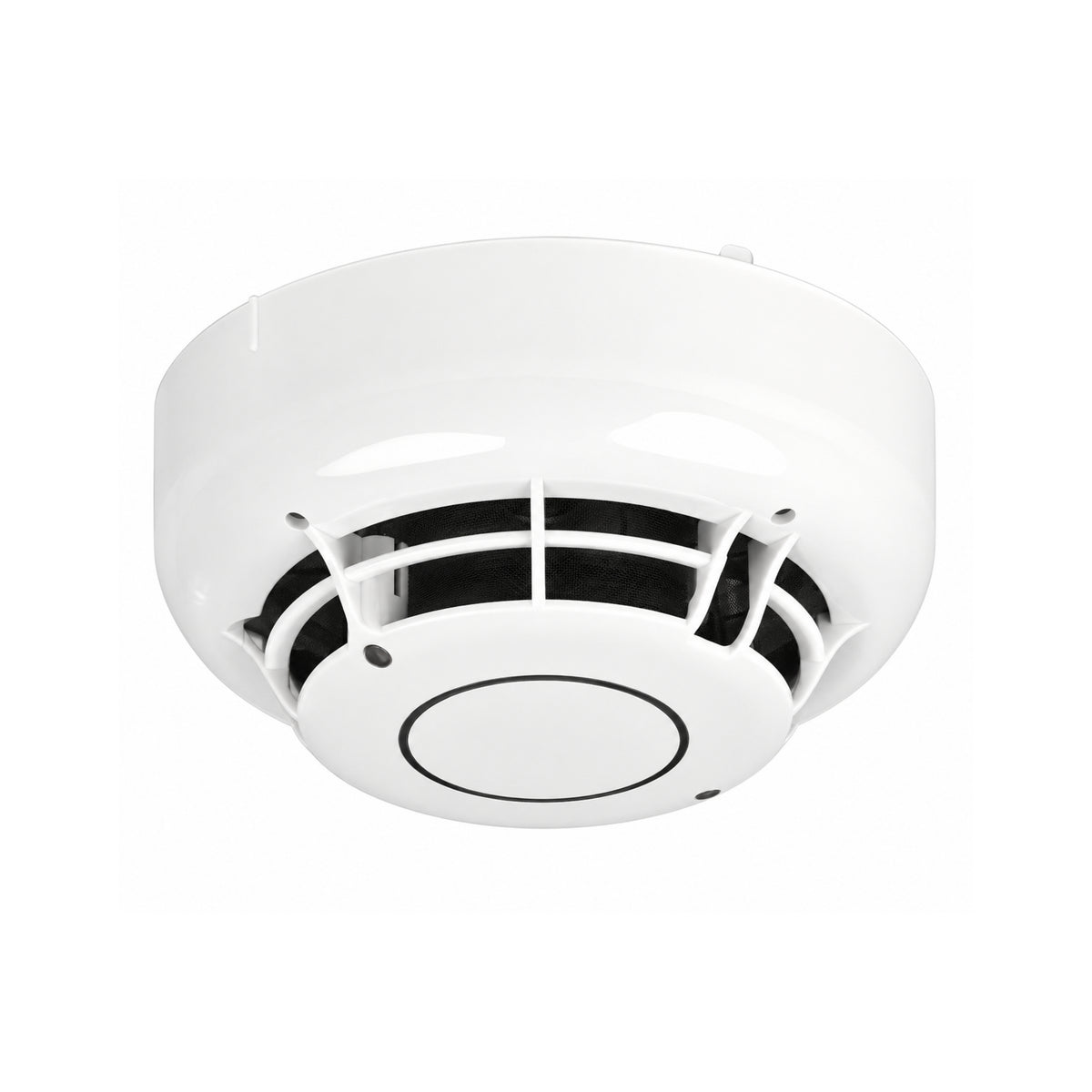

ATJ-E(HFP) – Analogue Addressable Multi-Heat Sensor

Intelligent analogue addressable multi-heat sensor, fully compatible with Hochiki ESP protocol. Incorporates fixed-temperature/variable-temperature and rate-of-rise heat detection elements, with user-selectable detection modes controlled from the fire alarm control panel. Designed for reliable heat detection with flexible alarm configuration.

Key Features:
• Analogue Addressable – Hochiki ESP Compatible
• Fixed Temperature & Rate-of-Rise Detection
• User-Selectable Detection Modes
• Electronic Addressing
• 360° Twin Fire LED Indication
• Panel-Controlled LED Pulsing/Non-Pulsing
• Operating Voltage: 17–41 VDC
• Operating Temperature: -20°C to +60°C
• LPCB & VdS Approved
• Dimensions: Ø100 × 45 mm
• White Polycarbonate Housing
