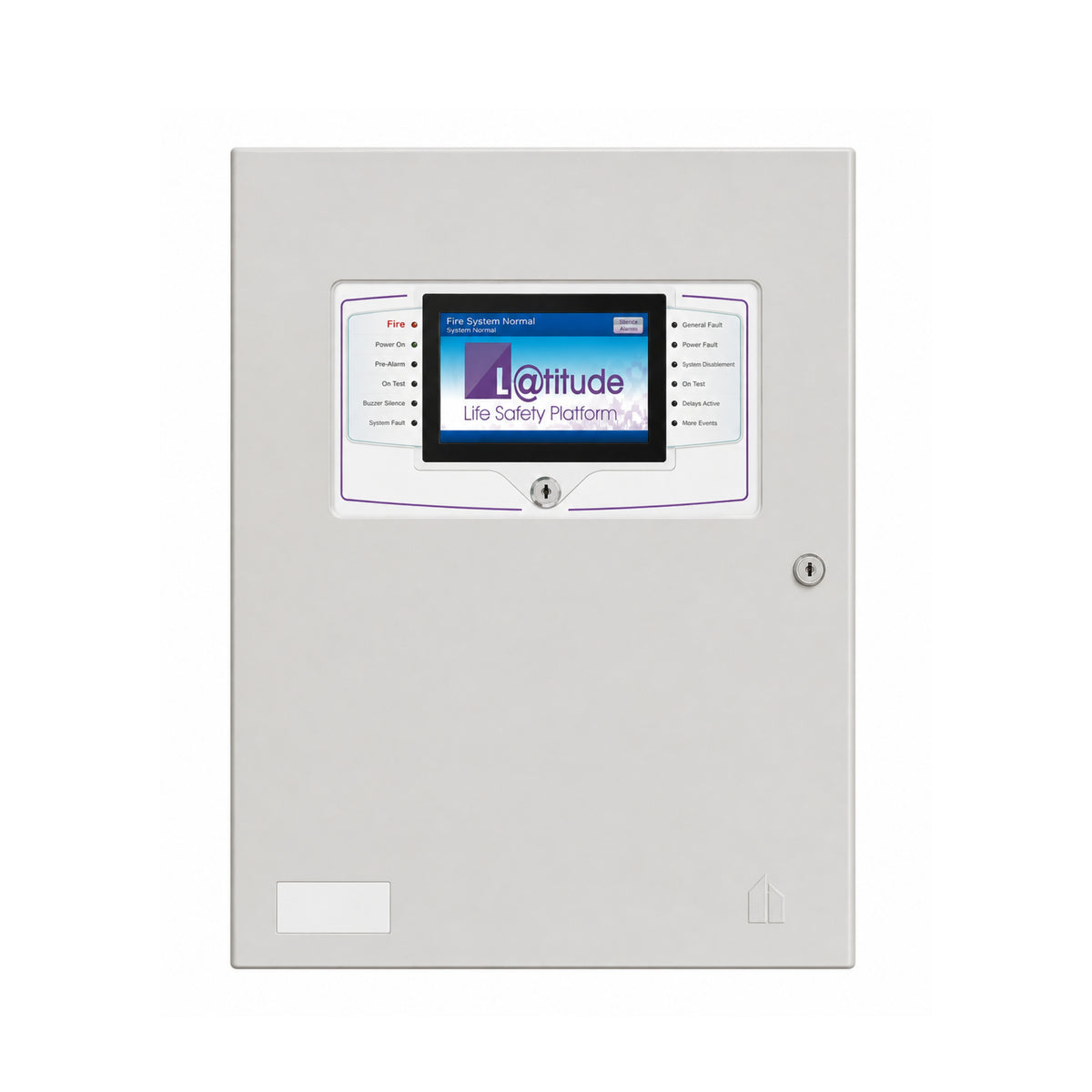

LATITUDE – 2–8 Loop Addressable Fire Control Panel

Advanced and highly flexible analogue addressable fire alarm control panel designed for medium to large-scale fire protection systems. Supporting 2 to 8 loops and Hochiki ESP devices, the Latitude provides powerful cause-and-effect programming, touchscreen operation, extensive I/O expansion and networking of up to 127 panels.

Key Features:
• 2–8 Loop Analogue Addressable Panel
• EN54-2, EN54-4 & EN54-13 Compliant
• 500mA Loop Current
• Up to 1,000 Devices per Panel
• 4 Programmable Sounder Circuits
• 3 Programmable Inputs & 5 Relay Outputs
• Up to 512 Programmable I/O Points
• Over 4,000 Sub-Address Points
• Networking up to 127 Panels
• USB Configuration & 2 Ancillary Serial Ports
• Compatible with Hochiki ESP Sensors & Modules
• Touchscreen Interface & Advanced Cause-and-Effect Programming
• 230VAC / 115VAC Power Supply Options
• Battery Capacity up to 26Ah / 45Ah
